รีวิว ASUS PRIME X470-PRO Motherboard
ช่องเสียบ Expansion Slot ต่างๆ นั้นประกอบไปด้วยช่องเสียบ PCIe3.0 x16 ทั้งหมดจำนวน 3 ช่อง โดยจะทำงานได้ Single x16 หรือ Dual x8+x8 หรือ Triple x8+x8+x4 และรองรับระบบ Multi-GPU ได้ทั้ง AMD CrossfireX และ NVIDIA SLI (2-Way)
Expansion Slot :
3rd/2nd/1st Gen AMD Ryzen™ Processors
- 2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/Athlon X4 Processors
- 1 x PCIe 3.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
- 1 x PCIe 3.0 x16 (x4 mode)
AMD X470 chipset
- 1 x PCIe 2.0 x16 (max at x4 mode) *1
- 3 x PCIe 2.0 x1
Multi-GPU Support :
3rd/2nd/1st Gen AMD Ryzen™ Processors
- Supports NVIDIA® 2-Way SLI® Technology
- Supports AMD CrossFireX™ Technology
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series/ Athlon X4 Processors
- Supports AMD CrossFireX™ Technology

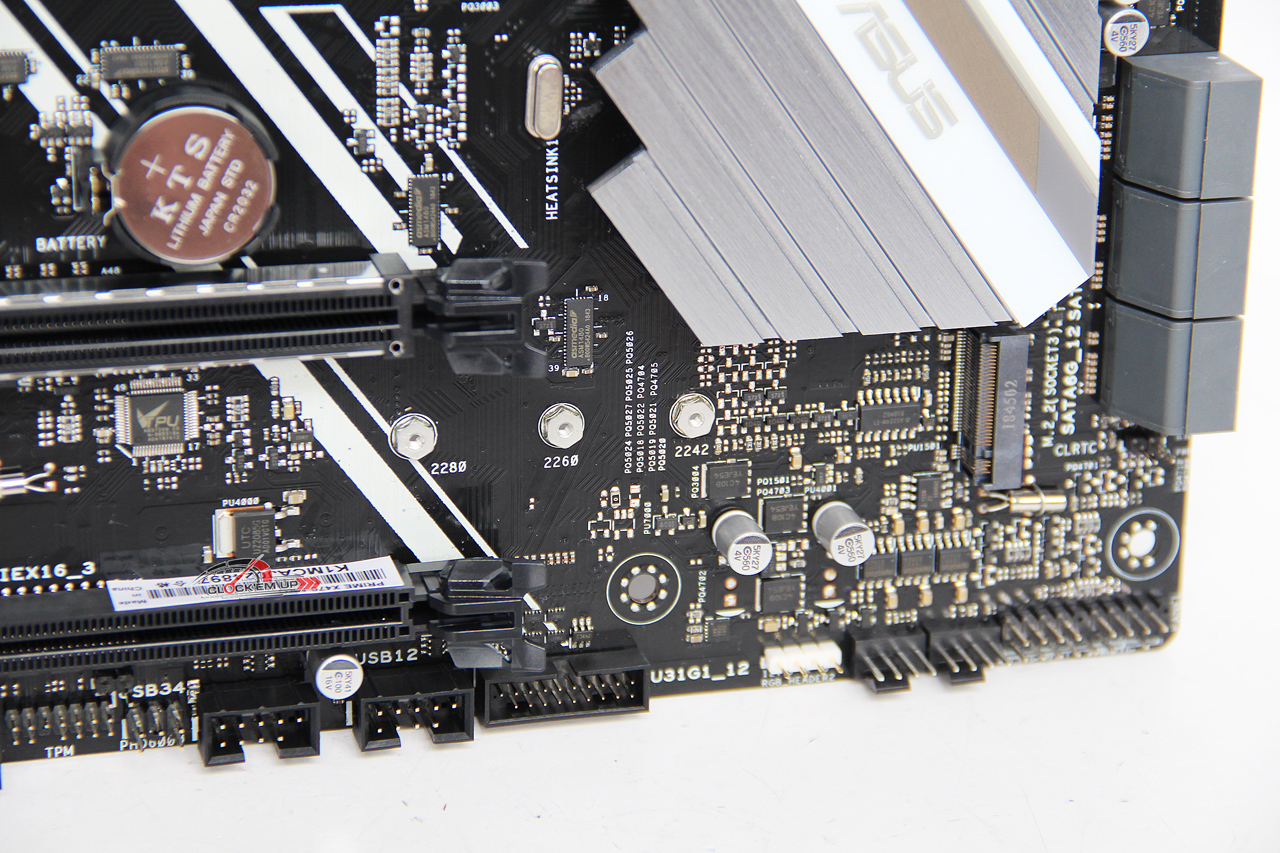

บริเวณช่องเสียบ M.2 Socket PCIe3.0 x4 อีกช่องจะอยู่บริเวณด้านล่างสุดของเมนบอร์ด โดยช่องนี้จะไม่มี M.2 Heatsink มาให้นะครับ

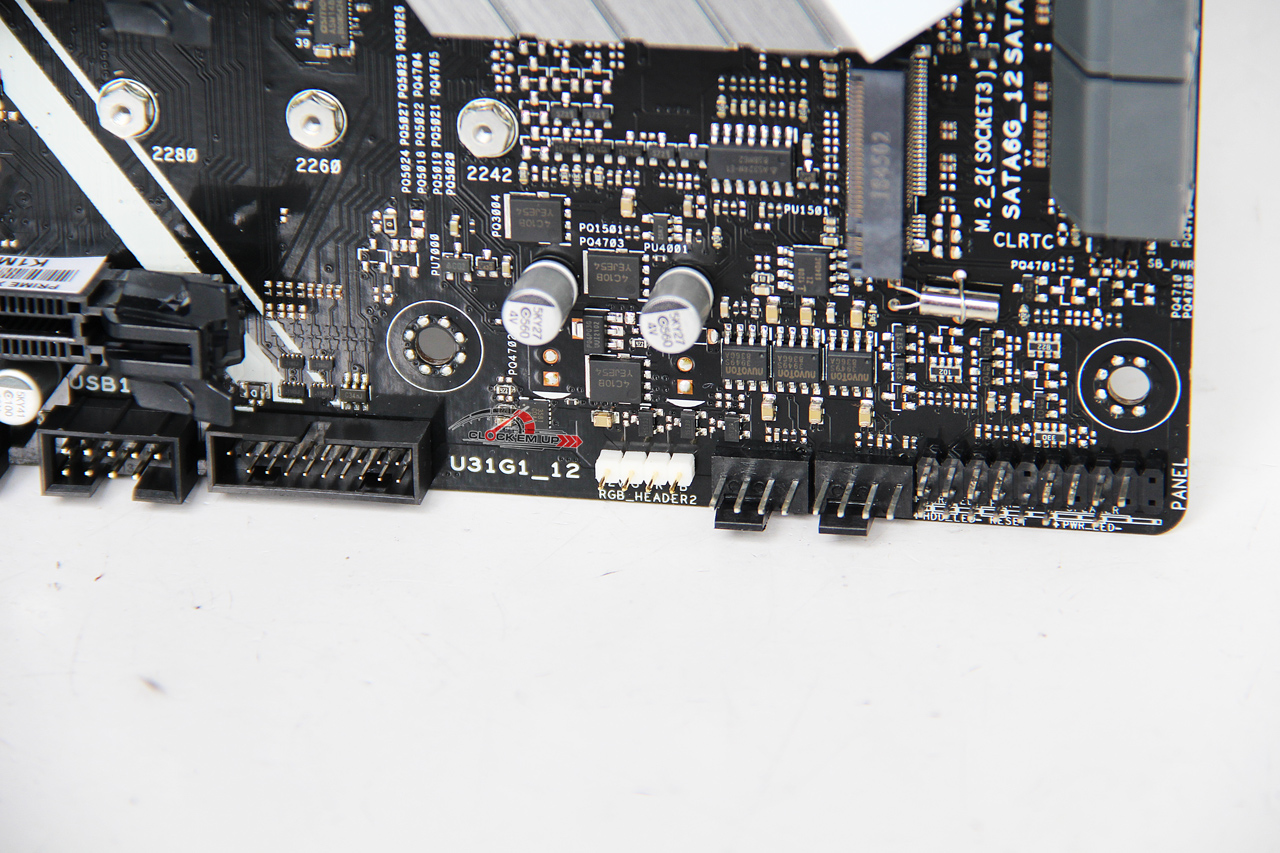

เมนบอร์ดรุ่นนี้ยังมีจุดต่อสาย RGB Header แบบ 12V 4-Pin มาให้อีก 1 ชุดครับ

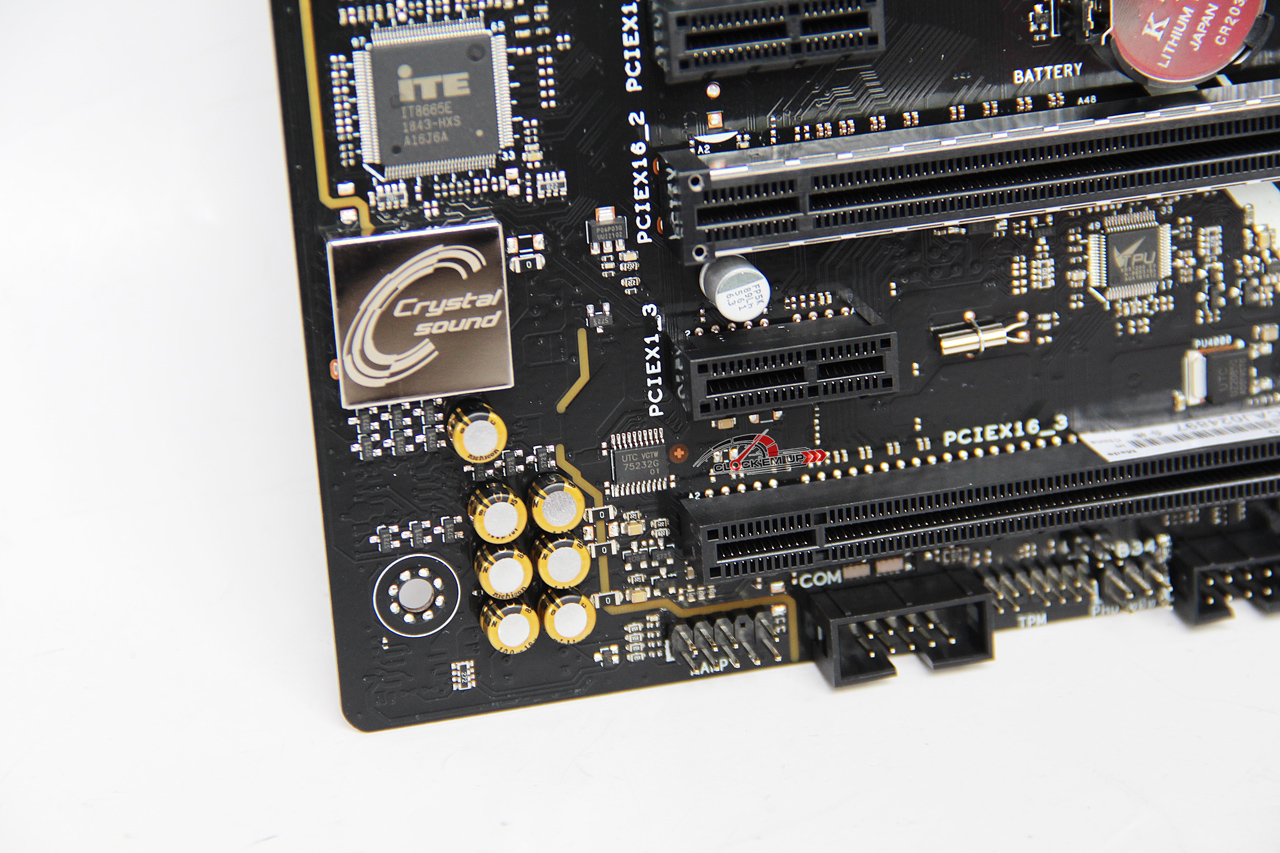

ระบบเสียงนั้นยังคงเลือกใช้ชิป Realtek ALC S1220A 8-CH HD Audio Codec ยืนพื้นเหมือนเดิมครับ
Sound :
- Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- EMI protection cover to prevent electrical noise to affect the amplifier quality

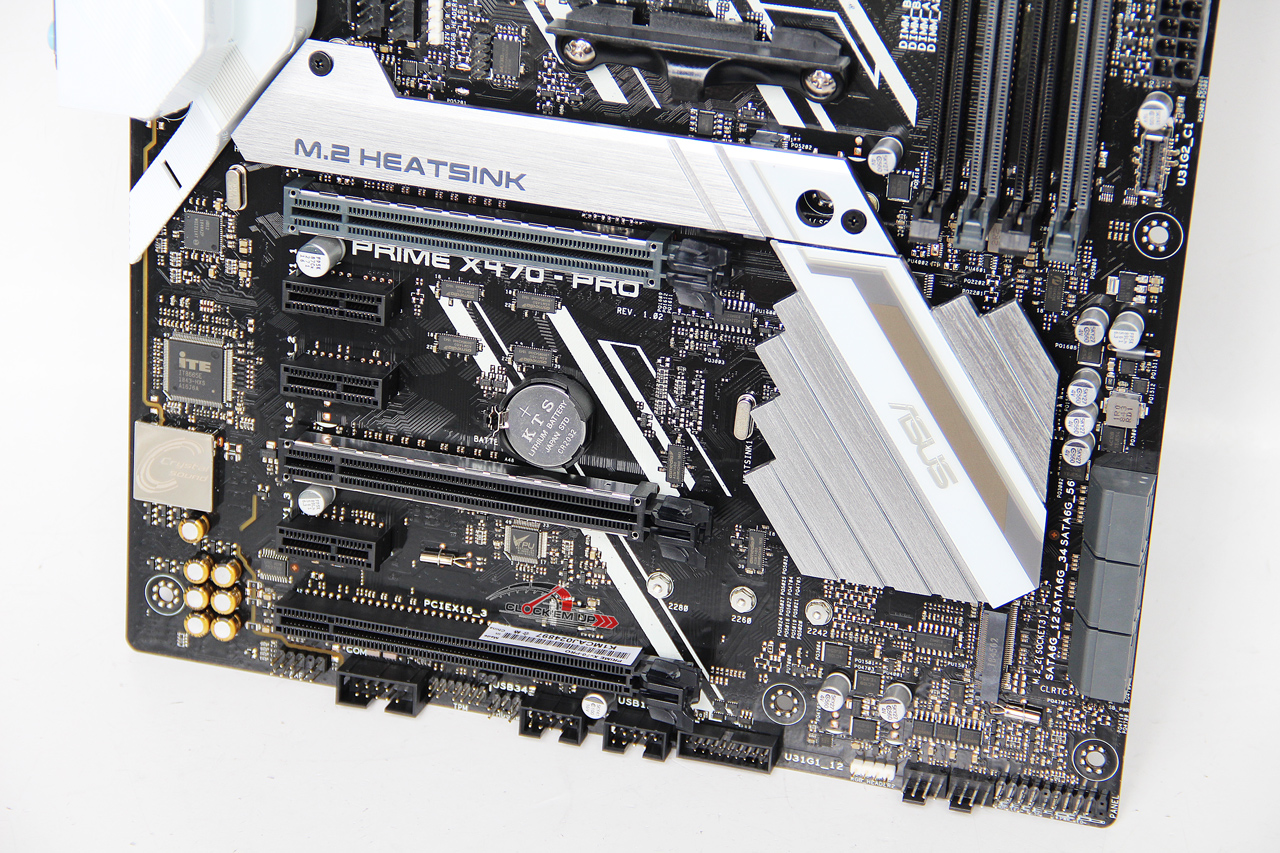

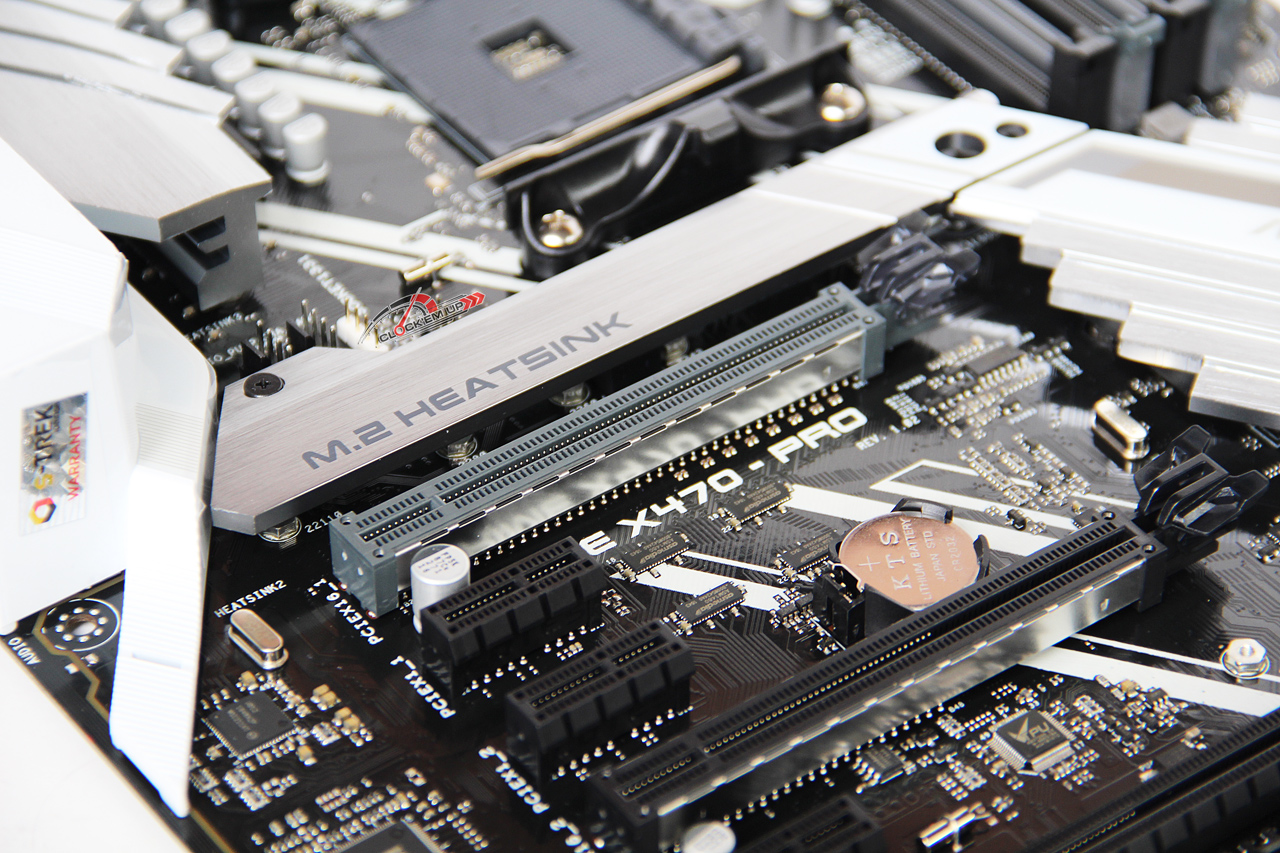

บริเวณ M.2 Heatsink และการติดตั้ง SafeSlot ให้กับช่องเสียบ PCIe3.0 x16 ใน 2 ช่องแรกเพื่อความแรงของของ Slot เวลาติดตั้งกราฟิกการืดขนาดใหญ่ที่มีน้ำหนักเยอะ

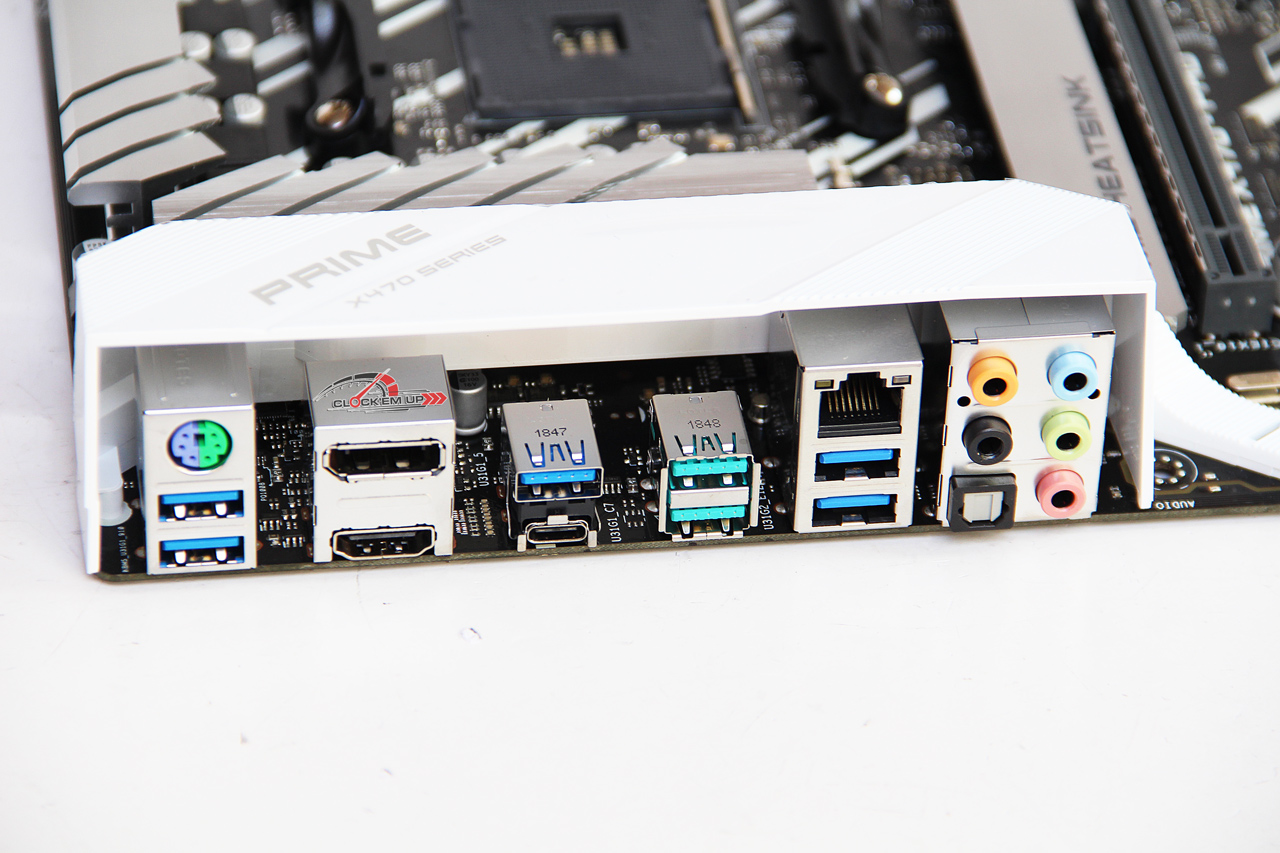

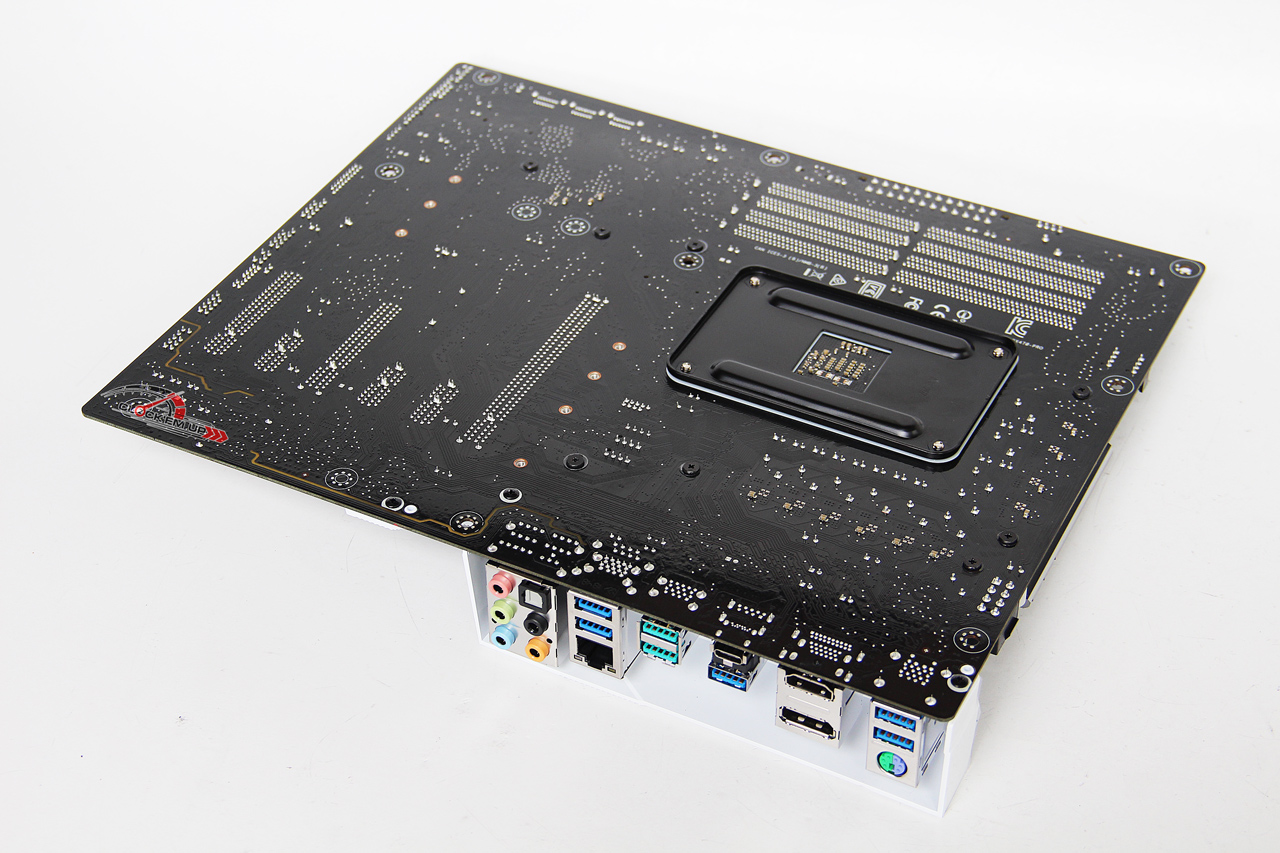

บริเวณด้านหลังของ Back I/O Panel ครับ
Back I/O Panel :
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DisplayPort
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.1 Gen 2 (teal blue)Type-A,
- 1 x USB 3.1 Gen 1 USB Type-CTM
- 5 x USB 3.1 Gen 1
- 1 x Optical S/PDIF out
- 5 x Audio jack(s)
LAN Port :
- Intel® I211-AT
USB Ports :
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
- 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A)
AMD X470 chipset :
- 1 x USB 3.1 Gen 2 front panel connector port(s)
AMD X470 chipset :
- 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A + USB Type-CTM, 2 at mid-board)
AMD X470 chipset :
- 4 x USB 2.0 port(s) (4 at mid-board)
ASMedia® USB 3.2 Gen 2 controller :
- 2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A)

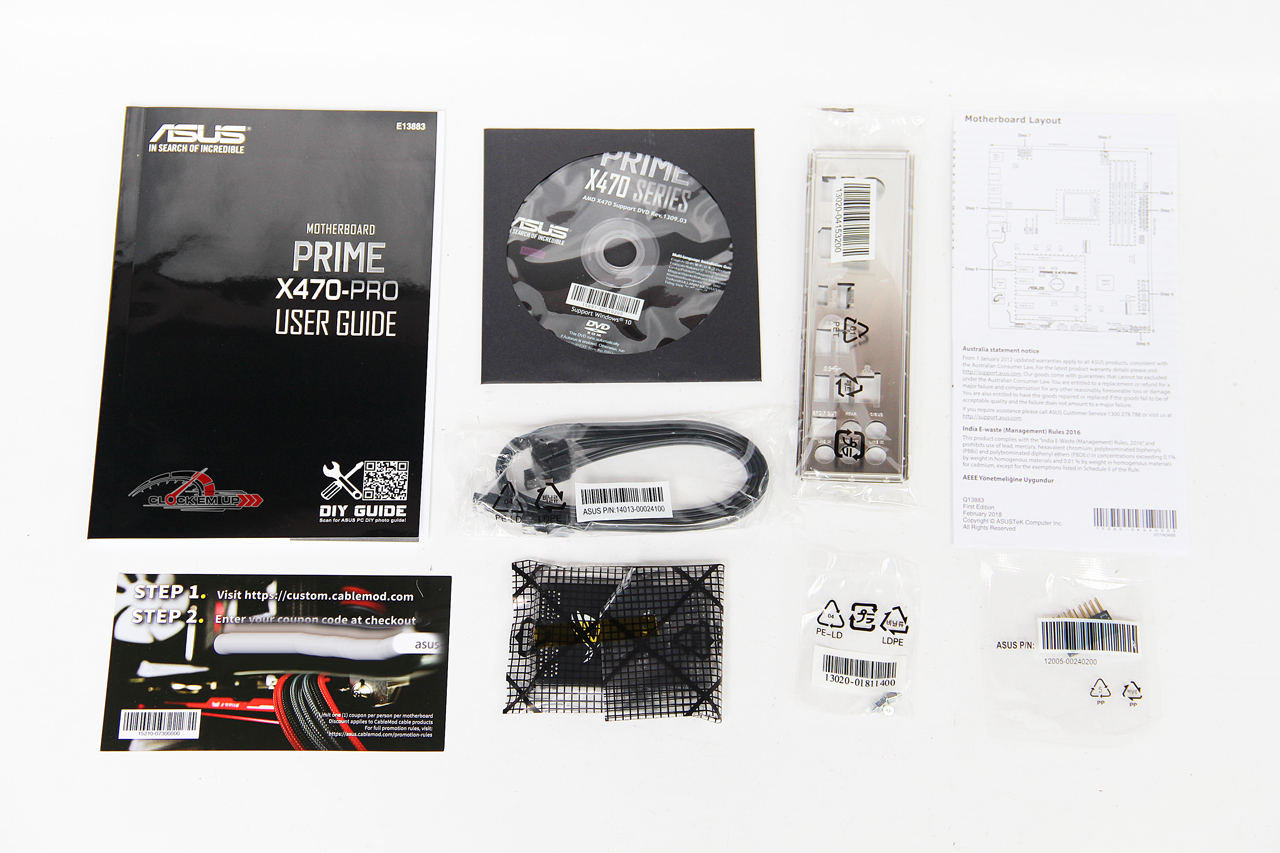

อุปกรณ์ Bundle ต่างๆ ที่แถมมาให้ในเมนบอร์ดครับ
Accessories :
- User’s manual
- ASUS Q-Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x M.2 Screw Package
- 1 x Supporting DVD
- 1 x SLI HB BRIDGE(2-WAY-M)
- 1 x Q-connector(s) (1 in 1)
